| Brand Name: | IDO |
| Model Number: | refrigerator compressor traverse |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

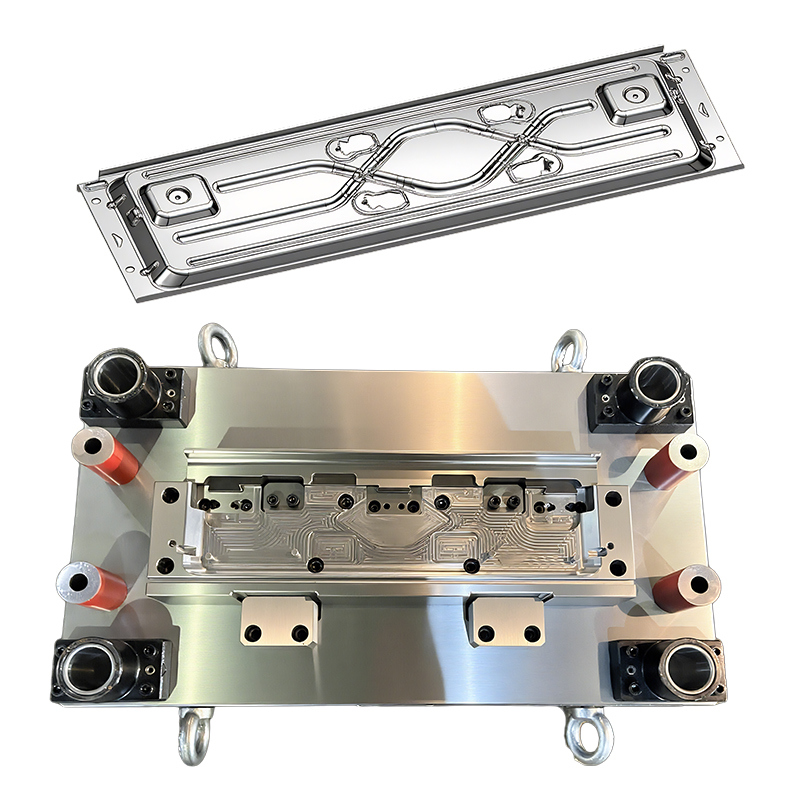

This custom stage stamping die is designed for forming refrigerator compressor traverse components.
The die structure, forming operations and tooling specifications are developed according to the customer’s approved part drawing, material specification, press parameters and production requirements.
The exact component name, material grade and die type must be confirmed during the technical review.
Manufacturing processes include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.
Selected die components may undergo vacuum heat treatment, deep cryogenic treatment, polishing or TiCN coating according to their materials and functions.
Inspection equipment includes CMMs, optical profile projectors, height gauges, material spectrometers and micrometers.
Please provide:
2D and 3D part drawings;
Complete material grade and sheet thickness;
Required production volume;
Press specifications;
Critical dimensions and tolerances.
Final die specifications, service life and acceptance criteria will be confirmed during the technical review.
| Item | Specification |
|---|---|
| Die Type | Stage stamping die, subject to final confirmation |
| Application | Refrigerator compressor traverse component |
| Workpiece Material | According to the approved customer drawing |
| Press Capacity | 250 metric tons |
| Die Dimensions | 950 * 550 * 450 mm |
| Approximate Die Weight | 1,000 kg |
| Standard Components | MISUMI |
| Design Life | 1,000,000 strokes under agreed operating and maintenance conditions |
| Minimum Order Quantity | 1 set |
| Lead Time | Approximately 6–8 weeks |
| Packaging | Rust-preventive oil, vacuum wrapping and export-grade wooden case |
