| Brand Name: | IDO |
| Model Number: | Automotive small table board |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

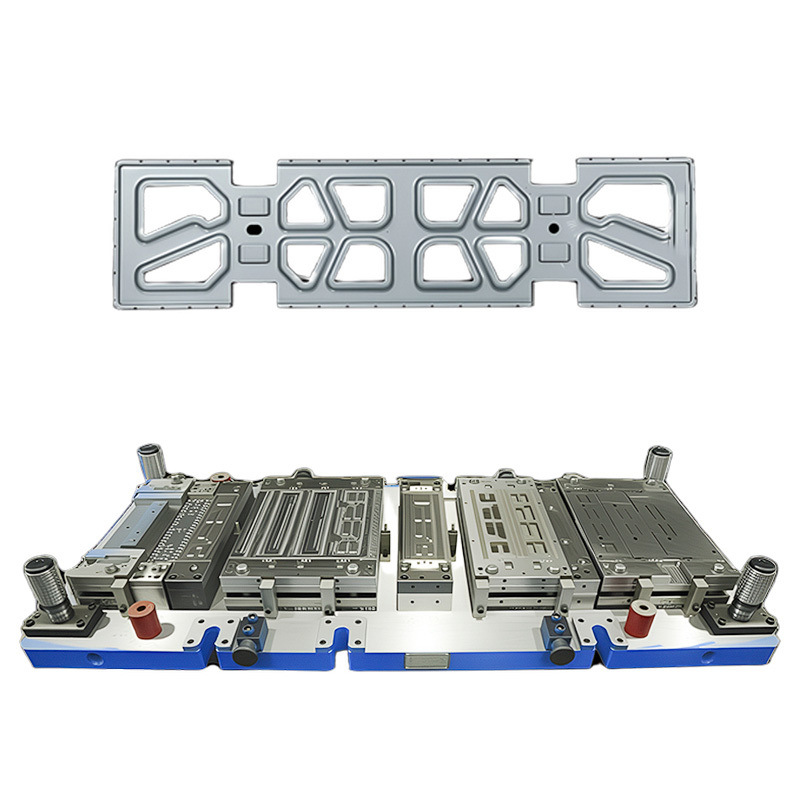

This custom progressive stamping die is designed for producing automotive small table-board components from S355 steel.
The strip layout, station sequence, die structure and tooling specifications are developed according to the customer’s approved part drawing, material thickness, press parameters and production requirements.
The exact component name, complete S355 material designation and acceptance criteria must be confirmed during the technical review.
The die is manufactured through CNC milling, surface grinding, wire EDM, sinker EDM, fitting, assembly and tryout.
Tool materials, standard components, heat treatment and coatings are defined in the approved die design and bill of materials.
Production speed, maintenance intervals and die-life conditions are confirmed in the technical agreement.
2D and 3D part drawings;
Complete S355 material designation and thickness;
Required production volume and stamping speed;
Press and feeding-system specifications;
Critical dimensions and tolerances;
Required sample quantity.
| Item | Specification |
|---|---|
| Die Type | Progressive stamping die |
| Application | Automotive small table-board component |
| Workpiece Material | S355 steel |
| Press Capacity | 500 metric tons |
| Die Dimensions | 2000 * 800 * 560 mm |
| Approximate Die Weight | 4,000 kg |
| Standard Components | MISUMI |
| Design Life | 1,000,000 strokes under agreed operating and maintenance conditions |
| Minimum Order Quantity | 1 set |
| Lead Time | Approximately 6–8 weeks |
| Packaging | Rust-preventive oil, vacuum wrapping and export-grade wooden case |
