| Brand Name: | IDO |
| Model Number: | washing machine front panel |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

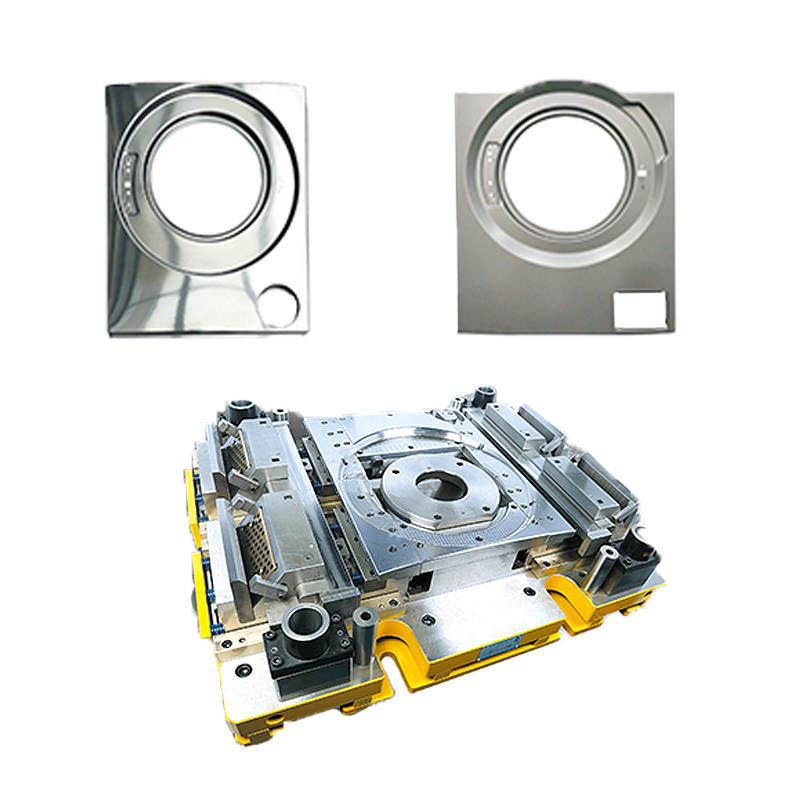

The Durable Household Washing Machine Front Panel Sheet Metal Stamping Die is engineered for high precision and longevity. Designed to deliver consistent shaping and flawless surface quality, it ensures efficient mass production of front panels with minimal maintenance and superior dimensional accuracy.
| Mould/Tool Type | Stage tool/mould/die |
| Production Application | White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...) |
| Metal Sheet Material | Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper |
| Mould Material | V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25 |
| Mould Base | SD, LKM Standard, HASCO Standard, Self-made, etc. |
| Tolerance | ±0.003mm |
| Hardness | Upon request |
| Surface Treatment | TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts |
| Precision Machining | CNC/ surface grinding machine/ wire cutting/ EDM |
| Measuring Instruments | CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc. |
| Drawing Format | DWG, STP, STEP, X_T, IGES, PDF |
| Design Software | Auto CAD, UG, Solidworks |
| Trade terms | FOB (Shanghai) |
| Mould Lead time | Generally 6~8 weeks (as per actual situation) |
