| Brand Name: | IDO |
| Model Number: | automotive oil cooler |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

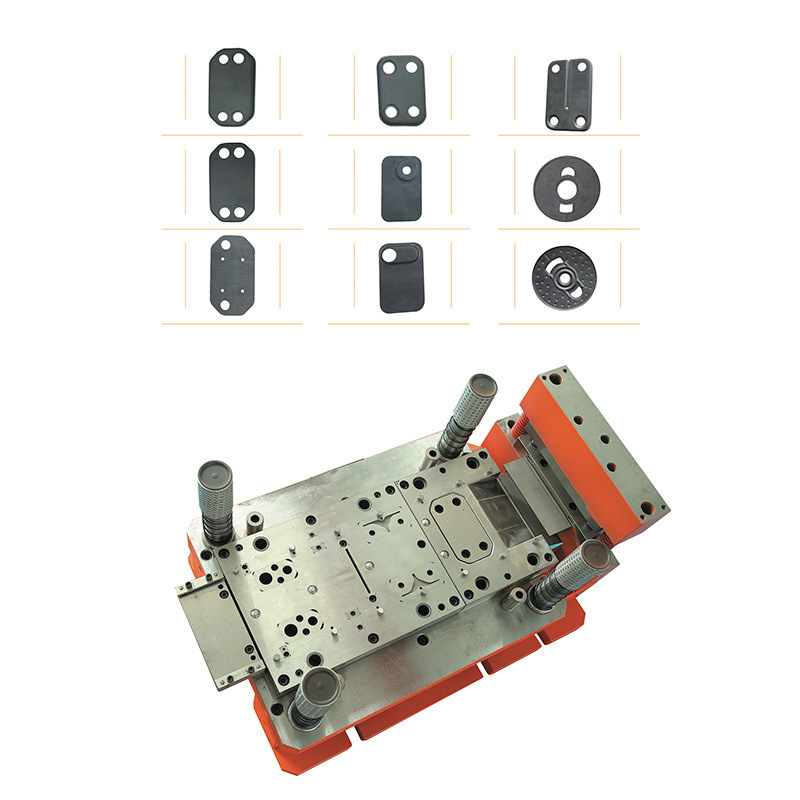

This custom progressive stamping die is designed for producing sheet-metal components used in automotive oil cooler assemblies.
The strip layout, forming stations, cutting clearance and die structure are developed according to the customer’s approved part drawing, material specification, press parameters and production requirements.
Manufacturing capabilities include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.
Selected die components may undergo vacuum heat treatment, deep cryogenic treatment, polishing or TiCN coating according to their materials and functions.
Inspection equipment includes CMMs, optical profile projectors, height gauges, material spectrometers, microscopes and micrometers.
DWG, STEP, X_T, IGES and PDF.
Design software includes AutoCAD and SOLIDWORKS.
Please provide:
Final specifications, die life and acceptance criteria will be confirmed during the technical review.
| Item | Specification |
|---|---|
| Die Type | Progressive stamping die |
| Application | Automotive oil cooler components |
| Workpiece Material | According to the approved customer drawing |
| Press Capacity | 200 metric tons |
| Die Dimensions | 1000 × 650 × 560 mm |
| Approximate Die Weight | 1,000 kg |
| Standard Components | MISUMI |
| Minimum Order Quantity | 1 set |
| Lead Time | Approximately 6–8 weeks |
| Packaging | Rust-preventive oil, vacuum wrapping and export-grade wooden case |
