| Brand Name: | IDO |
| Model Number: | automotive IGBT |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

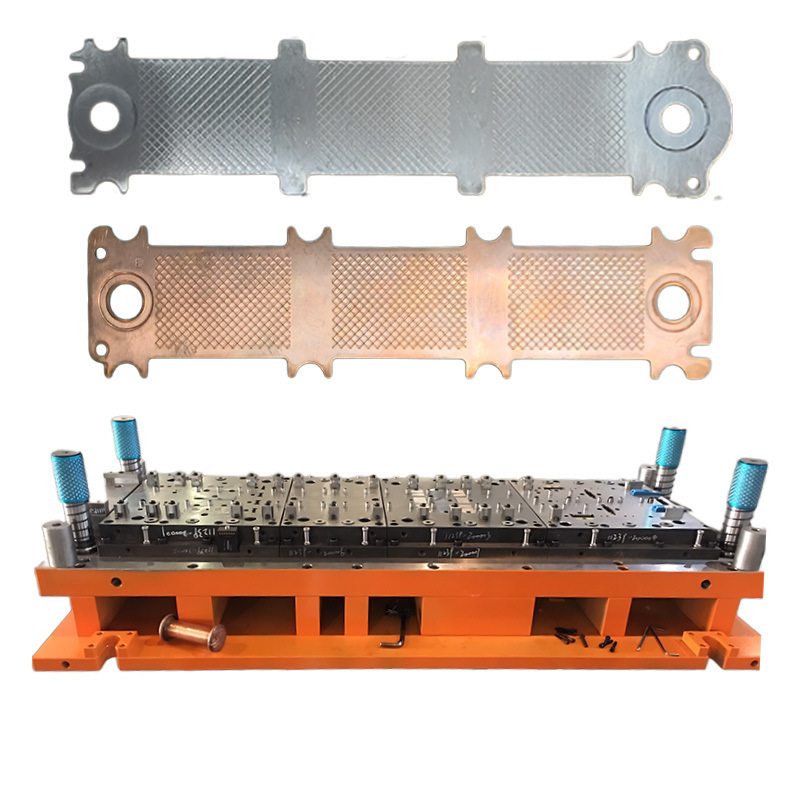

LY19/C11000 Automotive Stamping Die For IGBT(Insulated Gate Bipolar Transistor) Progressive Die
Description:
Our Durable Progressive Automotive Stamping Die is optimized for modern IGBT (Insulated Gate Bipolar Transistor) manufacturing, delivering precision and reliability for every component. Engineered for long life and consistent performance, it streamlines the stamping process to boost efficiency and reduce material waste. With robust construction and smooth operation, this die ensures repeatable accuracy and high-quality output. Perfect for today’s automotive electronics industry, it combines speed, durability, and precision to elevate your production standards.
Quick Detail:
Specifications:
|
Mould/Tool Type
|
Progressive tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
