| Brand Name: | IDO |
| Model Number: | Washing Machine Drum |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

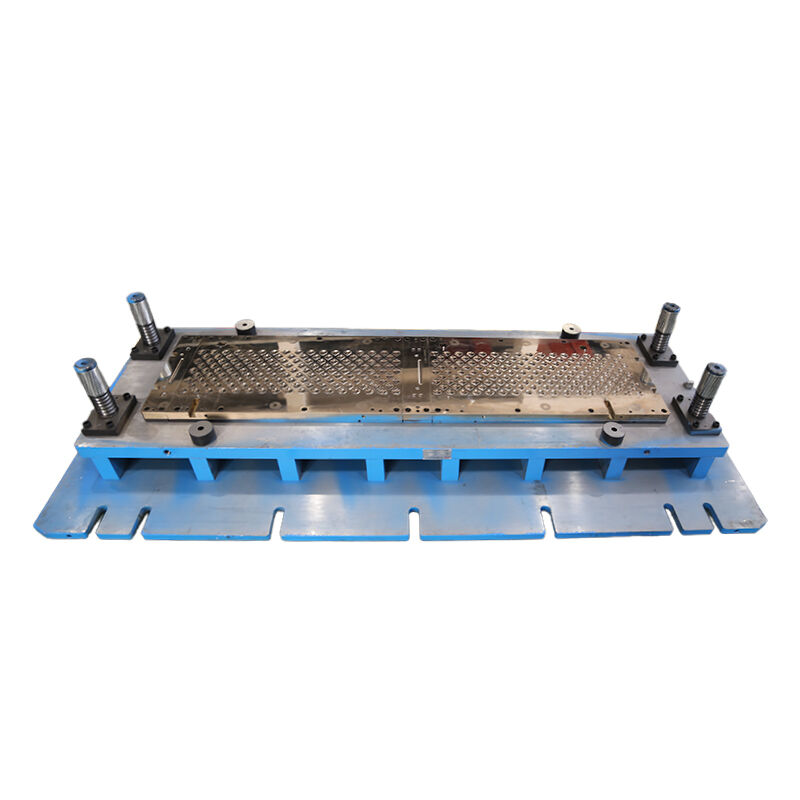

Stamping Mould for Stainless Steel Washing Machine Drum
Description
This high precision stamping mould is designed for sheet metal forming of washing machine inner drums.
The mould ensures stable stamping quality, accurate hole positioning and smooth surface finish, meeting the structural strength and balance requirements of washing machine inner drums during high-speed operation.
It is suitable for continuous mass production in household appliance manufacturing plants.
Precision Stamping Performance
The stamping mould provides uniform hole size and consistent layout, improving inner drum balance and washing efficiency.
Robust Mould Structure
Manufactured from high-quality tool steel, the mould maintains dimensional stability under long-term stamping operations.
Optimized for Cylindrical Drum Geometry
Specially engineered for curved inner drum structures with complex perforation patterns.
Long Service Life
Designed for high-cycle stamping production with reduced wear and low maintenance cost.
Customizable Design
The mould can be customized according to drum diameter, material thickness and stamping requirements.
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
