| Brand Name: | IDO |
| Model Number: | washing machine drum |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

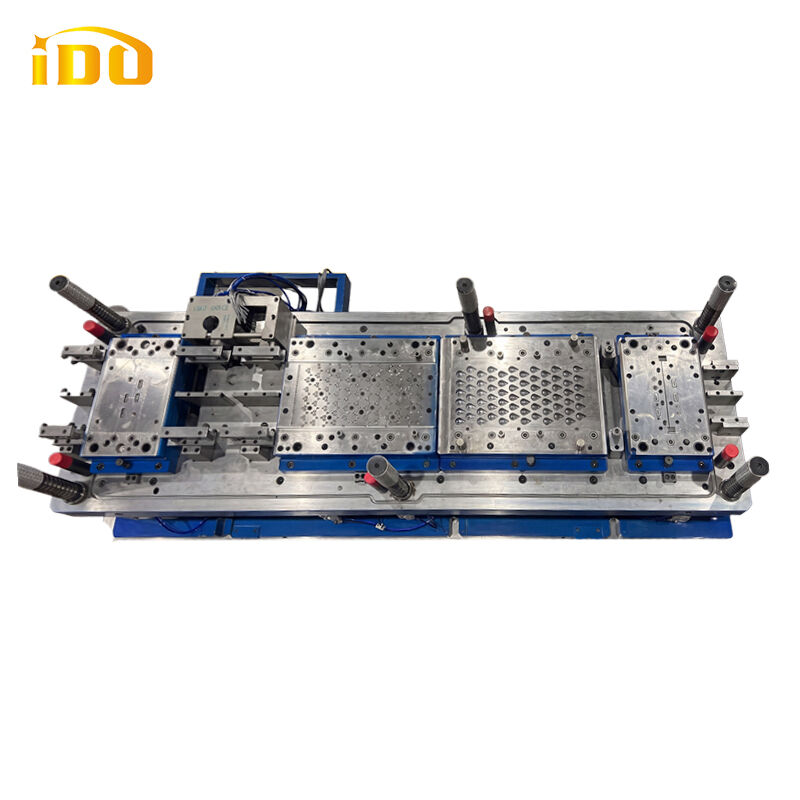

This sheet metal progressive stamping die is designed for manufacturing inner drum components used in 7 kg household washing machines. It is configured for a 250 mm wide metal strip and supports continuous feeding and sequential stamping operations during production. The overall die size is 2350 × 850 × 571 mm, with a total weight of approximately 3630 kg and a closed height of 571 mm. The die can be customized according to the customer’s inner drum drawings, sheet material, product dimensions, forming requirements and press specifications. IDO Technology provides integrated services covering process analysis, die design, manufacturing, assembly, testing, installation guidance and after-sales technical support.
| Item | Specification |
|---|---|
| Product Name | Washing Machine Inner Drum Progressive Stamping Die |
| Application | 7 kg Household Washing Machine Inner Drum |
| Die Type | Progressive Stamping Die |
| Die Size | 2350 × 850 × 571 mm |
| Strip Width | 250 mm |
| Die Weight | 3630 kg |
| Closed Height | 571 mm |
| Customization | Available According to Customer Drawings |
