| Brand Name: | IDO |
| Model Number: | washing machine side panel |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

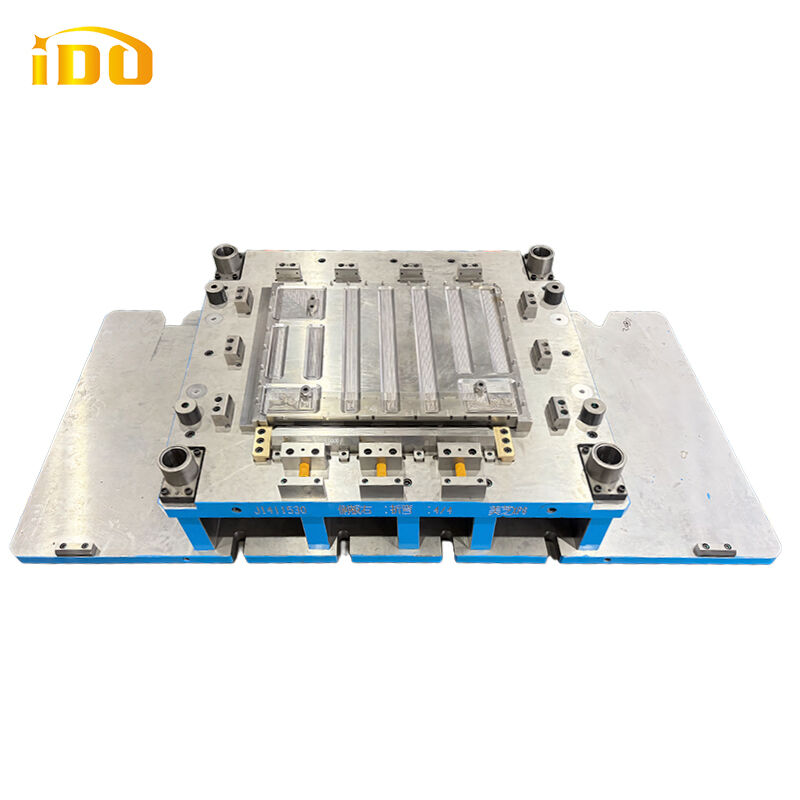

This application-specific sheet metal stamping die is developed for producing right side panels for household washing machines. With an overall dimension of 2200 × 1080 × 620 mm, the die weighs approximately 4120 kg and has a closed height of 620 mm. Its feeding line height is 357.3 mm, allowing the die to be matched with the customer’s selected feeding equipment and stamping press. The die design can be adjusted according to the right side panel drawing, sheet thickness, material type, forming requirements and production conditions. IDO Technology provides complete services from process analysis and die design to manufacturing, assembly, testing, installation guidance and after-sales support.
| Item | Specification |
|---|---|
| Product Name | Washing Machine Right Side Panel Stamping Die |
| Application | Household Washing Machine Right Side Panel |
| Die Size | 2200 × 1080 × 620 mm |
| Die Weight | 4120 kg |
| Closed Height | 620 mm |
| Feeding Line Height | 357.3 mm |
| Customization | Based on Customer Drawings and Production Requirements |
