| Brand Name: | IDO |
| Model Number: | Washing Machine |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

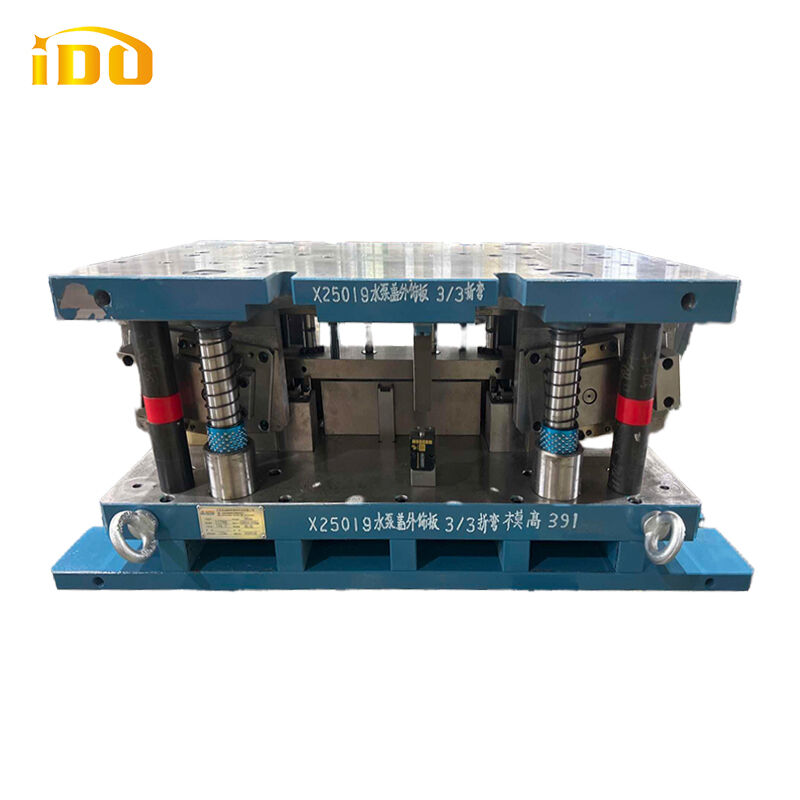

This sheet metal stamping die is designed for manufacturing exterior panels for household washing machines. The die measures 1100 * 648.8 * 390 mm and weighs 805.2 kg. It has a closed height of 390 mm and a feed line height of 230 mm. These specifications help buyers assess the tooling against their press and feeding equipment. The exterior panel drawing, sheet material and production requirements can be reviewed to confirm the tooling design for a specific project. IDO Technology provides services covering die design, manufacturing, assembly and trial runs.
| Attribute | Specification |
|---|---|
| Product Name | Washing Machine Exterior Panel Stamping Die |
| Application | Household Washing Machine Exterior Panel |
| Die Type | Sheet Metal Stamping Die |
| Die Size | 1100 * 648.8 * 390 mm |
| Die Weight | 805.2 kg |
| Closed Height | 390 mm |
| Feed Line Height | 230 mm |
