| Brand Name: | IDO |
| Model Number: | washing machine rear cover |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

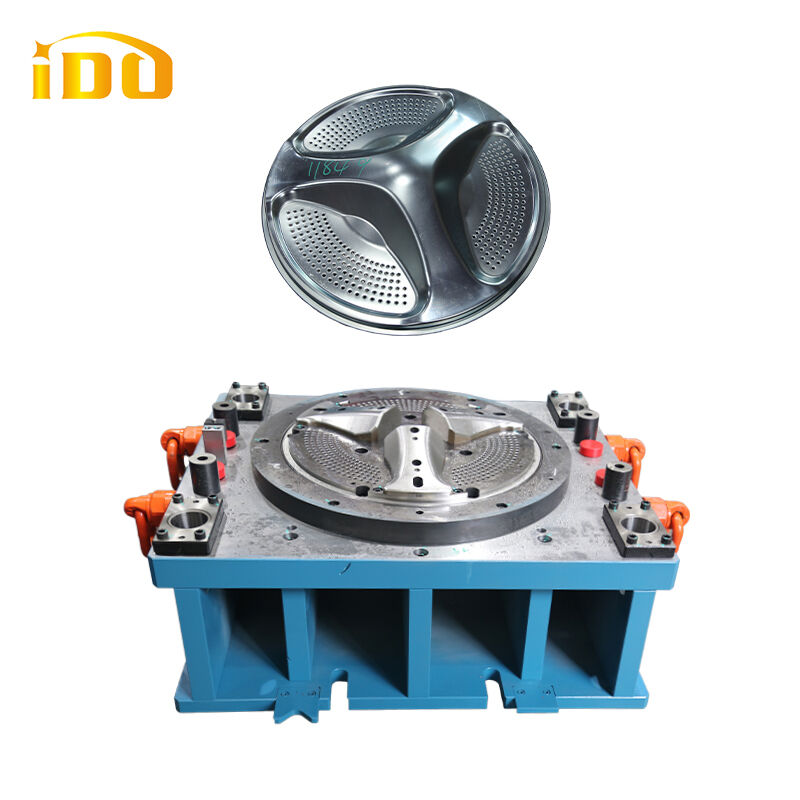

This sheet metal stamping die is used to manufacture rear covers for household washing machines. The die measures 900 * 750 * 547 mm and weighs 1550 kg. Its closed height is 547 mm, with a feed line height of 380 mm. These dimensions give buyers the information needed for an initial review of press space and feeding equipment. The rear cover drawing, sheet material and production requirements should be checked alongside the press specifications to confirm suitability for a particular project. IDO Technology can support the tooling process from die design and manufacturing through assembly and trial runs.
| Attribute | Specification |
|---|---|
| Product Name | Washing Machine Rear Cover Stamping Die |
| Application | Household Washing Machine Rear Cover |
| Die Type | Sheet Metal Stamping Die |
| Die Size | 900 * 750 * 547 mm |
| Die Weight | 1550 kg |
| Closed Height | 547 mm |
| Feed Line Height | 380 mm |
