| Brand Name: | IDO |
| Model Number: | washing machine drum |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

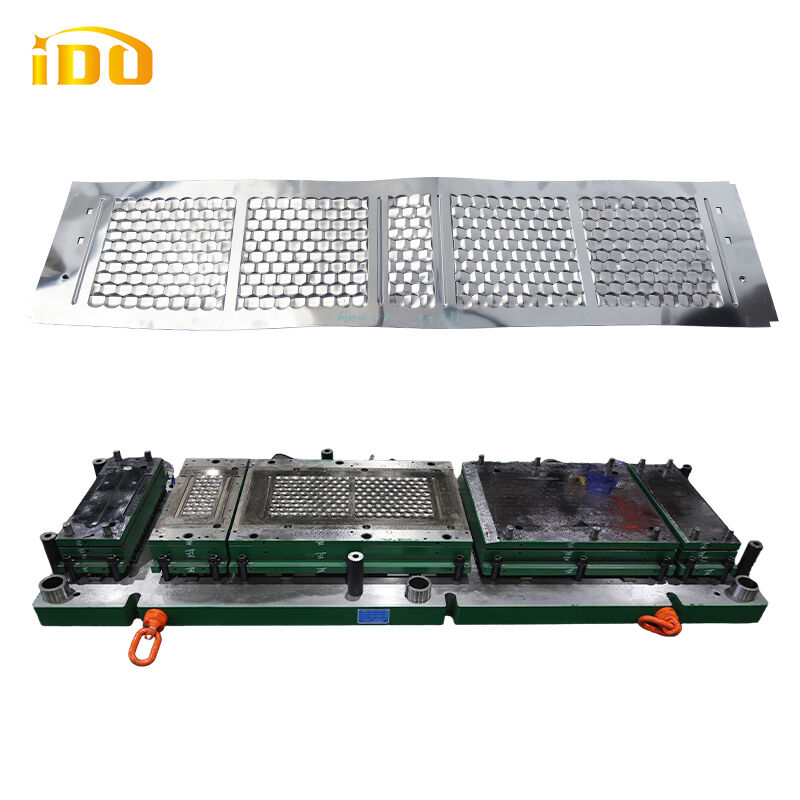

12kg Top Loading Washing Machine Drum Sheet Metal Stamping Die
This sheet metal stamping die is designed for the inner drum of a 12 kg household top loading washing machine. The die measures 2380 * 860 * 492 mm and weighs 4900 kg. Its maximum forming force is 150T. These specifications provide a basis for reviewing the tooling footprint and forming load when planning inner drum production. Press compatibility should be checked against the approved tooling drawings, including the press stroke, bolster size and installation requirements. The inner drum drawing and sheet material specification are also needed to assess whether the die suits a particular production project.
| Attribute | Specification |
|---|---|
| Product Name | Washing Machine Inner Drum Stamping Die |
| Application | Household Washing Machine Inner Drum |
| Washing Machine Type | Pulsator |
| Washing Machine Capacity | 12 kg |
| Die Size | 2380 * 860 * 492 mm |
| Die Weight | 4900 kg |
| Maximum Forming Force | 150T |
