| Brand Name: | IDO |
| Model Number: | dishwasher outer door |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

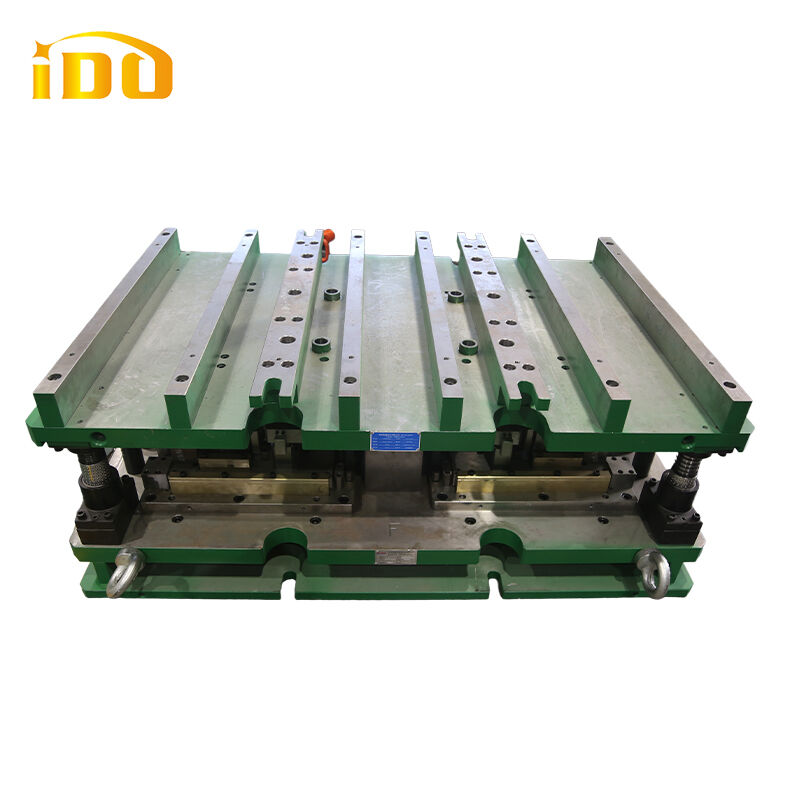

1500×990mm Household Dishwasher Outer Door Sheet Metal Stamping Die
This sheet metal stamping die is used to manufacture the outer door of a 45FS household dishwasher. The die measures 1500 × 990 × 533 mm and weighs 2400 kg. These dimensions help buyers make an initial assessment of the tooling footprint, handling requirements and available press space. The outer door is a visible part of the dishwasher, so its drawing and appearance requirements should be reviewed together when evaluating the stamping process. For use with a different door design, the part geometry and press specifications need to be checked before the tooling configuration can be confirmed.
| Attribute | Specification |
|---|---|
| Product Name | Dishwasher Outer Door Stamping Die |
| Application | Household Dishwasher |
| Component | Outer Door |
| Product Identifier | 45FS |
| Die Type | Sheet Metal Stamping Die |
| Die Size | 1500 × 990 × 533 mm |
| Die Weight | 2400 kg |
