| Brand Name: | IDO |
| Model Number: | washing machine front panel |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

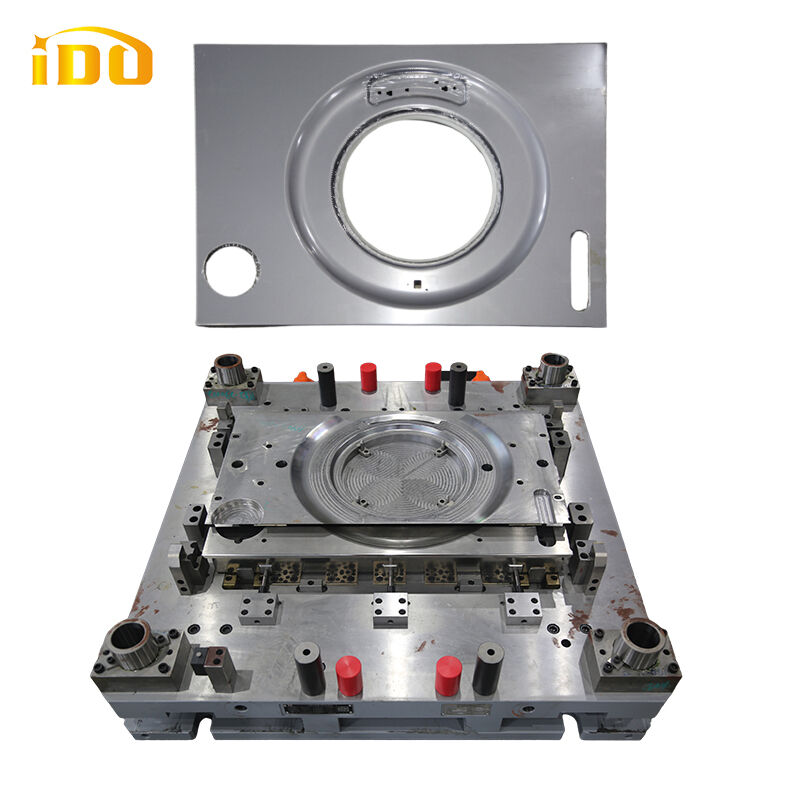

This sheet metal stamping die is designed for a household washing machine front panel made from PCM material. It is associated with product reference WF73L and is specified for equipment with a 315T press tonnage. The die measures 1128 × 1140 × 540 mm and weighs 3100 kg. For washing machine manufacturers and tooling buyers, these specifications provide a clear starting point for checking the die against the intended front panel, available press capacity, installation space and lifting arrangements. Final part geometry and material thickness should be matched to the approved product drawings.
| 产品属性 | 参数 |
|---|---|
| Product Type | Sheet Metal Stamping Die |
| Application | Household Washing Machine Front Panel |
| Product Reference | WF73L |
| Part Material | PCM |
| Equipment Tonnage | 315T |
| Die Dimensions | 1128 × 1140 × 540 mm |
| Die Weight | 3100 kg |
