| Brand Name: | IDO |
| Model Number: | washing machine drum |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

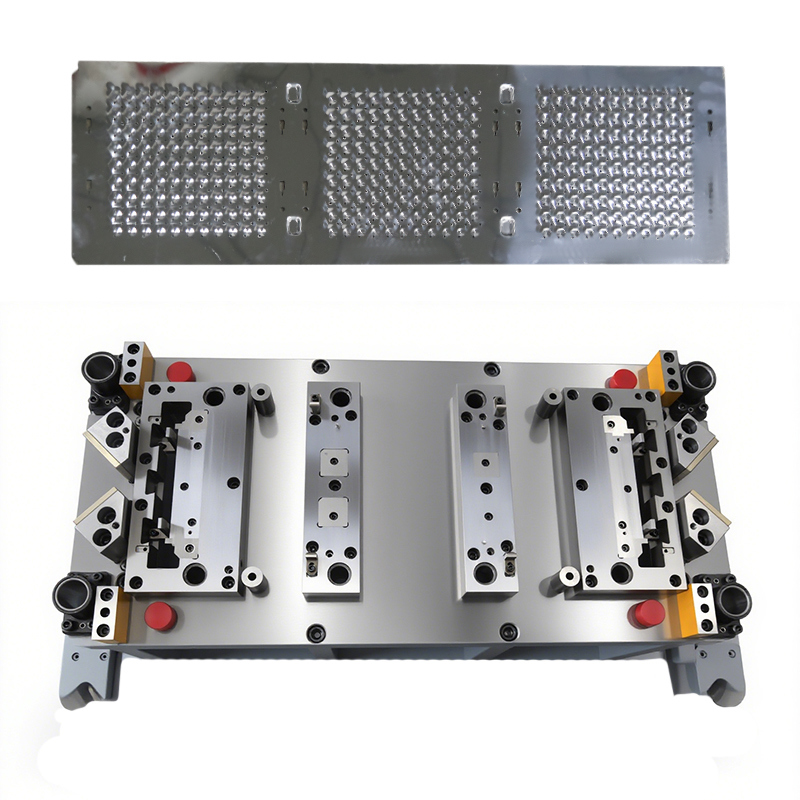

SUS430 7T Washing Machine Drum Sheet Metal Stamping Die
Description:
The High-Precision, Long-Life, Cost-Efficient Metal Stamping Die – Stage Die for Washing Machine Drum Sheet is engineered to deliver accurate forming and consistent quality. Its robust design ensures extended service life and reduced maintenance costs, supporting high-volume production with reliable performance.
Quick Detail:
Specifications:
| Mould/Tool Type | Stage tool/mould/die |
|---|---|
| Production Application | White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...) |
| Metal Sheet Material | Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper |
| Mould Material | V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25 |
| Mould Base | SD, LKM Standard, HASCO Standard, Self-made, etc. |
| Tolerance | ±0.003mm |
| Hardness | Upon request |
| Surface Treatment | TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts |
| Precision Machining | CNC/ surface grinding machine/ wire cutting/ EDM |
| Measuring Instruments | CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc. |
| Drawing Format | DWG, STP, STEP, X_T, IGES, PDF |
| Design Software | Auto CAD, UG, Solidworks |
| Trade terms | FOB (Shanghai) |
| Mould Lead time | Generally 6~8 weeks (as per actual situation) |
