| Brand Name: | IDO |
| Model Number: | microwave oven baffle |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

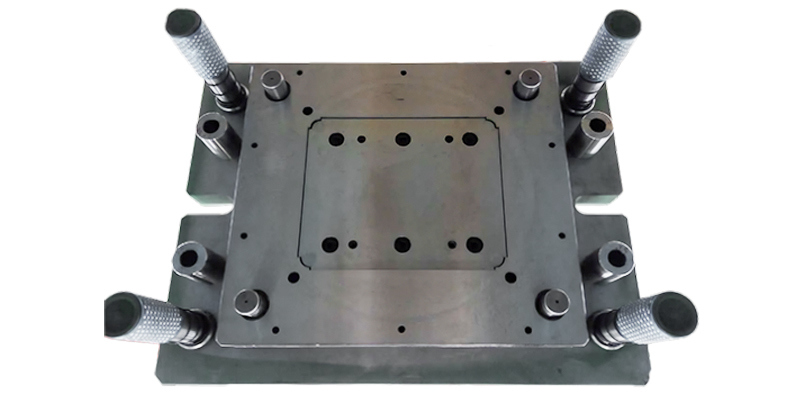

This custom cold stamping stage die is designed for forming DC04 microwave oven baffles.
The sheet-metal part is formed by a cold stamping process. No hot stamping process is involved.
The die structure, forming operations and tooling specifications are developed according to the customer’s approved part drawing, material thickness, press parameters and production requirements.
Manufacturing processes include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.
Where required, selected die components may undergo heat treatment or wear-resistant coating to achieve the specified hardness and service performance. This treatment applies to the die components, not to the stamped sheet.
Inspection requirements are defined according to the approved part drawing, die drawing and project acceptance criteria.
Final die specifications and acceptance criteria will be confirmed during the technical review.
| Item | Specification |
|---|---|
| Die Type | Cold stamping stage die |
| Application | Microwave oven baffle |
| Workpiece Material | DC04 cold-rolled steel |
| Press Capacity | 300 metric tons |
| Die Dimensions | 850 * 550 * 345 mm |
| Approximate Die Weight | 400 kg |
| Specification | Custom-built |
| Minimum Order Quantity | 1 set |
| Lead Time | Approximately 6–8 weeks |
| Packaging | Rust-preventive oil, vacuum wrapping and export-grade wooden case |
