| Brand Name: | IDO |
| Model Number: | Automotive Head Gasket |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

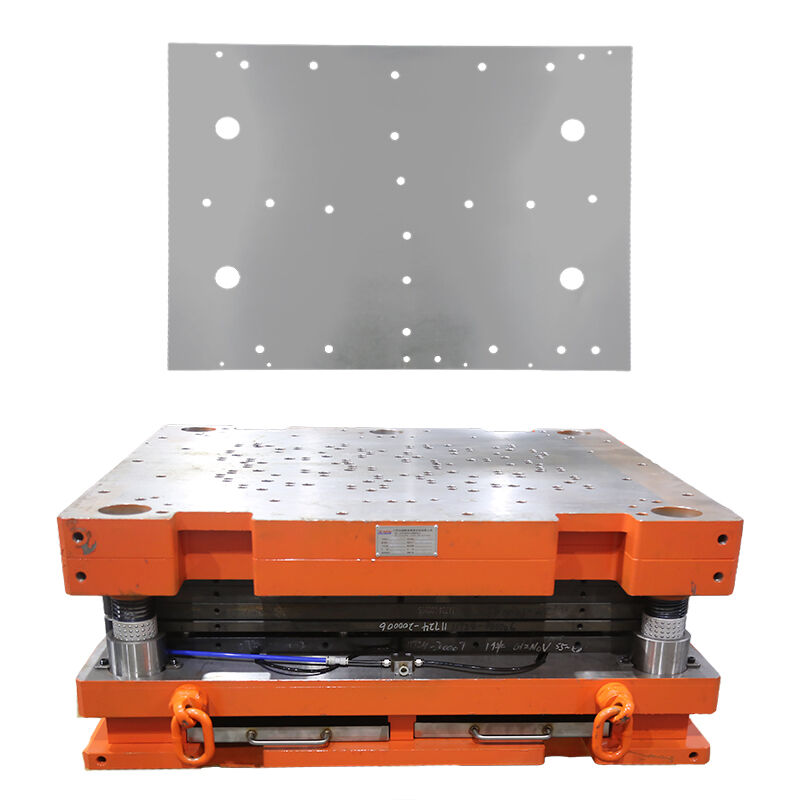

High Precision Stamping Die for Automotive Engine Head Gasket
Description
The Automotive Head Gasket Sheet Metal Stamping Die is engineered for high-precision stamping and forming of head gaskets used in automotive engines.
With a rigid die structure and optimized stamping design, the die ensures accurate profile forming, stable dimensional consistency, and reliable sealing surface quality, which are critical for engine performance and durability.
Manufactured from premium-grade die steel and processed with advanced machining technology, this stamping die delivers stable operation, high production efficiency, and extended service life. It is suitable for continuous and high-volume production, and can be customized according to different engine platforms, head gasket designs, material compositions, and thickness requirements, making it a dependable solution for automotive parts manufacturers and OEM suppliers.
Product Name: Automotive Head Gasket Sheet Metal Stamping Die
Die Type: Stamping Die
Application: Automotive Engine Head Gasket Production
Component Category: Engine Sealing Parts
Process Method: Sheet Metal Stamping & Forming
Compatible Materials: Stainless Steel / Carbon Steel / Multi-layer Metal Sheets
Key Advantages: High precision forming, stable sealing edge quality, long die service life
Production Mode: Continuous / High-volume Production
Customization: Supported (engine model, gasket profile, material structure)
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
