| Brand Name: | IDO |
| Model Number: | Automotive head gasket |
| MOQ: | 1 set |
| Price: | $10000-$50000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C,T/T |

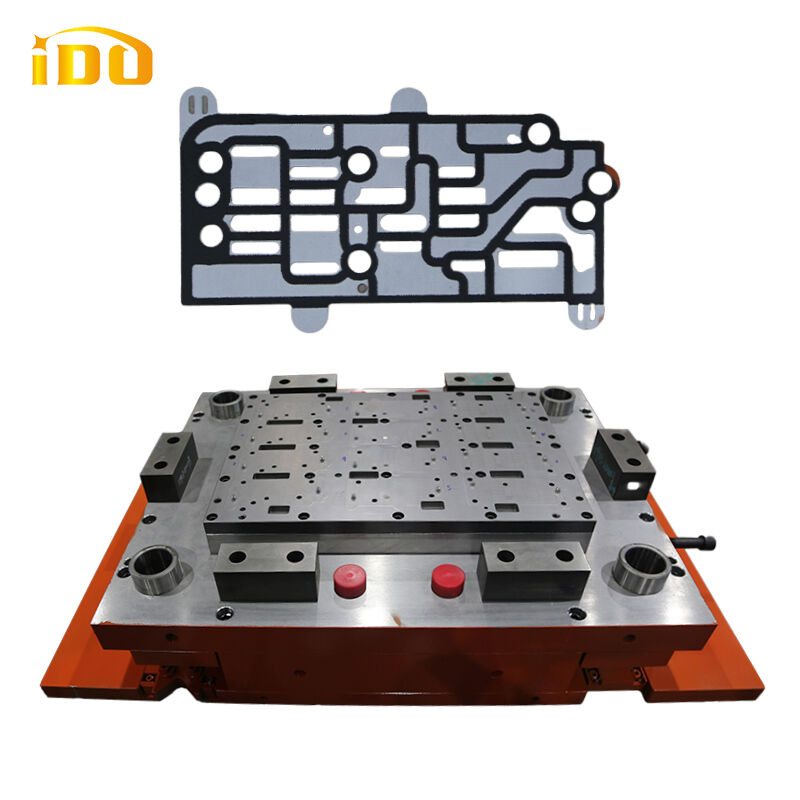

This sheet metal stamping die is designed for bead forming in the production of automotive cylinder head gaskets. The die measures 1000 * 600 * 395 mm, weighs 1090 kg and has a closed height of 395 mm. Its feed line height is 220 mm, and the sheet dimension is 470 * 315 * 0.18 mm. These specifications help buyers review the required press space, feeding position and sheet size for the stamping setup. The bead geometry and finished gasket profile should be checked against the part drawing when assessing the die for a specific project. Press compatibility and production requirements should be confirmed using the complete tooling drawings.
| Attribute | Specification |
|---|---|
| Product Name | Cylinder Head Gasket Stamping Die |
| Application | Automotive Cylinder Head Gasket |
| Forming Process | Bead Forming |
| Die Size | 1000 * 600 * 395 mm |
| Die Weight | 1090 kg |
| Closed Height | 395 mm |
| Feed Line Height | 220 mm |
| Sheet Dimension | 470 * 315 * 0.18 mm |
